Emergency Strata Roof Repair in Aldergrove, BC: Flat Roof Membrane Failure Case Study

Aldergrove sits at the eastern edge of the Township of Langley, where suburban strata developments give way to farmland, equestrian properties, and the Aldergrove Regional Park. The community's strata complexes — a mix of low-rise apartments and townhouse developments built primarily in the early 2000s — face a combination of challenges unique to this part of the Fraser Valley: heavy rainfall, agricultural debris, seasonal temperature swings, and roofing systems that are now reaching critical maintenance thresholds.

In February 2026, Strata Roofers received an emergency call from the property manager of a 24-unit strata apartment complex on Fraser Highway. Multiple units on the top floor were reporting water staining on ceilings, and one unit had active dripping during a sustained rain event. The building's SBS modified bitumen flat roof, installed in 2004, had developed critical membrane failures that required immediate intervention.

Understanding Flat Roof Challenges in Aldergrove

Aldergrove's climate and geography create specific stresses on flat roof systems that differ from coastal Vancouver or the more sheltered central Fraser Valley. The community receives approximately 1,600 mm of annual rainfall — slightly more than Vancouver — with the added complication of colder winter temperatures that subject roof membranes to freeze-thaw cycles. The adjacent agricultural land generates seasonal debris (pollen, crop dust, straw fragments) that accumulates on flat roofs, blocks drains, and accelerates organic growth on membrane surfaces.

For strata buildings with flat or low-slope roofs, these conditions create a predictable deterioration pattern. By the 18-to-22-year mark, original SBS modified bitumen installations in Aldergrove typically show significant seam separation, granule loss on the cap sheet, and embrittlement of the base plies — exactly what we found on the Fraser Highway complex.

How We Detected the Leak Sources

Flat roof leaks are notoriously difficult to trace. Water entering through a membrane failure can travel laterally along the insulation board or roof deck for metres before finding a path to the interior — meaning the ceiling stain inside a unit rarely aligns with the actual point of entry above. Our leak detection protocol uses a combination of techniques to pinpoint every failure point:

• Infrared thermal imaging: We scanned the entire roof surface during the evening cooling period, when moisture-saturated insulation retains heat longer than dry areas. The thermal scan revealed four distinct moisture zones totalling approximately 280 square feet — significantly more than the two visible leak points suggested
• Electronic leak detection (ELD): Using low-voltage electrical field mapping, we identified three specific membrane breaches — two at membrane seams and one at a rooftop HVAC penetration — that were not visible during standard visual inspection
• Core sampling: We extracted three insulation core samples from the moisture zones identified by thermal imaging. All three showed saturated polyisocyanurate insulation with R-value degradation exceeding 40%, confirming that the affected areas required full insulation replacement rather than simple membrane patching

Emergency Response and Temporary Protection

Before permanent repairs could be planned and approved by the strata council, we needed to stop active water ingress immediately. Our emergency crew completed the following within four hours of arrival:

1. Cleared all roof drains and scuppers of accumulated debris — two of the four primary drains were completely blocked by decomposed leaf material and agricultural residue
2. Applied emergency membrane patches with cold-applied adhesive over the three identified breach points
3. Installed temporary EPDM rubber flashing around the compromised HVAC penetration
4. Deployed weighted tarps over the largest membrane separation zone as backup protection
5. Documented all damage with photographs and measurements for the strata council and insurance adjuster

The temporary repairs held through three subsequent rain events while the strata council organized an emergency meeting to approve permanent repair funding.

Permanent Repair: Scope and Execution

Repair Option Analysis

We presented the strata council with three options, ranging from targeted repair to full replacement:

The council selected Option B — section replacement — which addressed all current failures and provided a 15-20 year service life for the repaired zones, buying time to plan and fund a complete roof replacement within 5-8 years as part of their updated depreciation report capital plan.

Repair Process

Our crew completed the permanent repairs over four working days:

Day 1: Membrane removal and insulation extraction. We cut and removed the existing two-ply SBS membrane across all four moisture zones identified by thermal imaging, extending 24 inches beyond the moisture boundary in every direction to ensure we captured all compromised material. Saturated polyisocyanurate insulation was extracted down to the concrete roof deck, which was inspected for structural damage (none found — the concrete deck was in good condition despite the moisture exposure).

Day 2: Deck preparation and insulation installation. The exposed concrete deck was cleaned, primed, and allowed to dry to below 5% moisture content (verified by pin meter readings). New 3-inch polyisocyanurate insulation board was mechanically fastened to the deck with tapered edge pieces to create positive drainage flow toward the nearest roof drains — correcting a design deficiency in the original installation that had contributed to ponding water in two of the four repair zones.

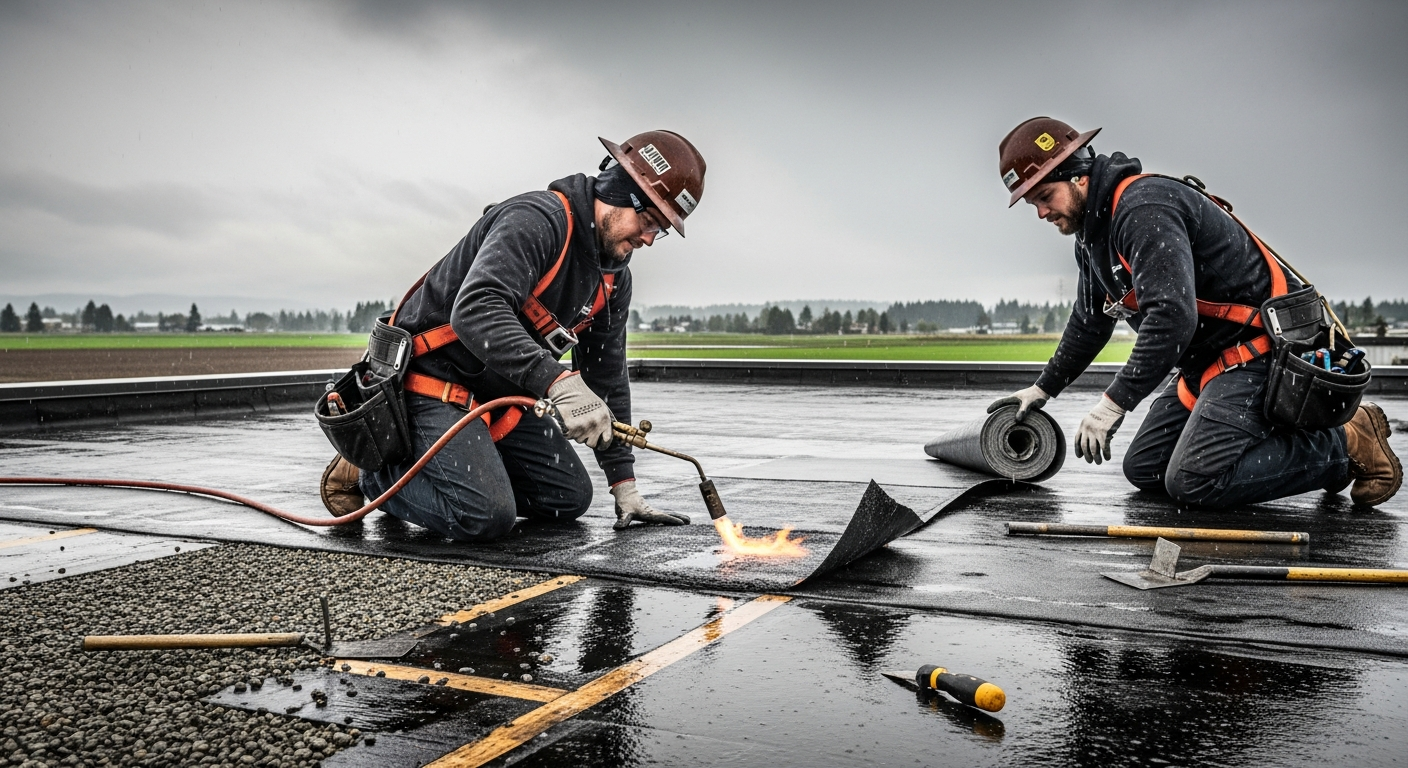

Day 3: Membrane installation. A new two-ply SBS modified bitumen membrane system was torch-applied over the repaired sections, with all seams lapped a minimum of 4 inches and torched to full adhesion. The new membrane was integrated with the existing surrounding membrane using a 12-inch overlap zone, with the transition seam sealed using a combination of torch welding and elastomeric sealant to prevent edge lifting.

Day 4: Flashing, penetrations, and final inspection. The HVAC curb that had been a primary leak source was completely re-flashed with new two-ply membrane wrapping the curb and integrating with the field membrane. All other rooftop penetrations within the repair zones received new membrane collars. The two blocked roof drains were fitted with new cast-iron drain assemblies with debris strainers to prevent future blockage. A final flood test confirmed watertight integrity across all repair zones.

Cost Breakdown

The strata corporation's insurance covered $18,200 after a $2,500 deductible, with the remaining $3,900 funded from the contingency reserve. Our detailed documentation — including thermal images, core sample results, and time-stamped photographs — enabled the insurance adjuster to approve the claim within 10 days, well below the typical 3-4 week processing time for strata roof claims.

Preventing Future Flat Roof Failures in Aldergrove

Following the repair, we implemented a preventive maintenance program for the strata corporation designed specifically for Aldergrove's conditions:

• Quarterly drain clearing: All roof drains and scuppers are cleared of debris four times per year — critical in Aldergrove where agricultural debris and leaf fall create persistent blockage risk
• Bi-annual membrane inspection: Spring and fall inspections check all seams, flashings, and penetrations for early signs of separation or deterioration
• Annual thermal scan: A full infrared scan each fall identifies any new moisture infiltration before it causes interior damage — catching problems when they're $500 repairs rather than $25,000 emergencies
• Ponding water monitoring: After each major rain event, standing water that hasn't drained within 48 hours is documented and addressed through targeted re-sloping

Signs Your Aldergrove Strata Roof Needs Attention

Strata councils and property managers in Aldergrove should watch for these warning signs that indicate flat roof repair may be needed:

1. Water stains or bubbling on top-floor unit ceilings — even small discolourations indicate moisture intrusion
2. Musty odours in top-floor units, especially after rain — suggests hidden moisture in the roof assembly
3. Visible membrane bubbling, cracking, or alligator-pattern surface deterioration
4. Standing water on the roof more than 48 hours after rain
5. Vegetation or moss growing on the membrane surface
6. Loose or separated flashing at parapet walls, HVAC units, or pipe penetrations
7. Blocked or slow-draining roof drains

Frequently Asked Questions
